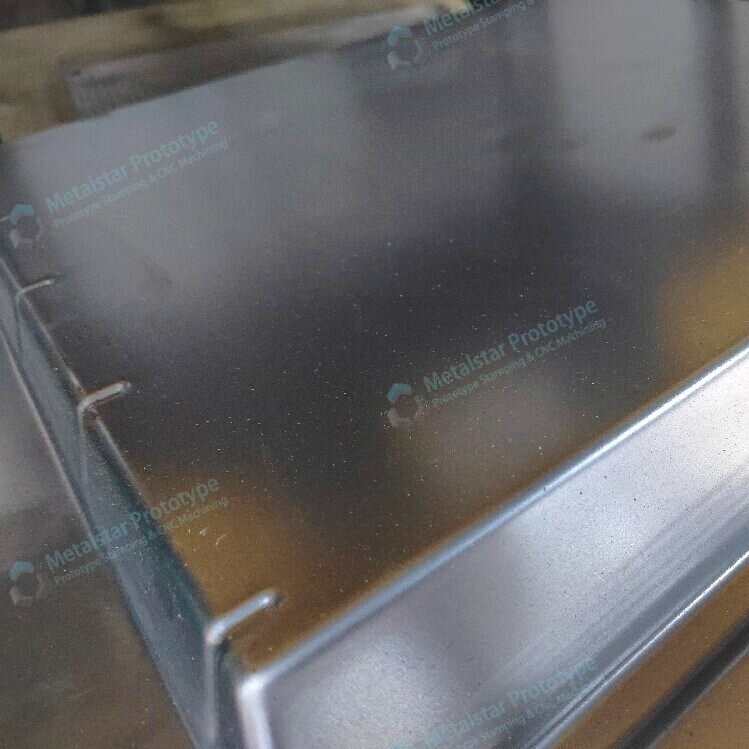

Product Details:
|
| Raw Material: | DC06 CRS T=1.20+/-0.02mm | Devices Configuration: | Hydraulic Press, Flat Laser Cutter |
|---|---|---|---|
| Application: | Prototype Deep Draw Stamping | Capability: | Prototyping, Low Volume Production |
| Manufacturing Precision: | +/-0.75mm Or Up To +/-0.50mm | Ways Of Delivery: | Express, Air Freight, Sea Freight |
| Highlight: | electrical devices deep draw metal stamping,electrical devices metal stamping parts,DC06 CRS custom metal stamping parts |
||
At Metalstar, we understand that delivering a high-quality deep draw stamping prototype part often involves a complex series of forming operations. A medium complexity design typically requires a combination of deep draw stamping, trimming, bending, and roll forming, among other processes.
| Steel Material Properties | |||||||||
| Material Grade/Description | Chemical Composition (weight %) | Tensile strength (Mpa) |
Yield strength (Mpa) |
Elongation | Remarks | ||||
| (C) | (P) | (Mn) | (S) | (Si) | |||||
| ASTM/AISI 1008 | <=0.10 | <=0.030 | 0.30～0.60 | <=0.05 | 0.15～0.35 | >=325 | >=195 | 33% | Similar to CN-GB/T699 8# steel |
| ASTM/AISI 1010 | 0.08-0.13 | <=0.05 | 0.30～0.60 | <=0.05 | 0.15～0.35 | >=335 | >=205 | 31% | Equative to CN-GB/T699 10# steel |
| ASTM/AISI 1015 | 0.13～0.18 | <=0.050 | 0.30～0.60 | <=0.05 | 0.15～0.35 | >=375 | >=225 | 27% | Equative to CN-GB/T699 15# steel |
| ASTM/AISI 1018 | 0.17～0.24 | <=0.035 | 0.70～1.00 | <=0.035 | 0.17～0.37 | >=410 | >=275 | 24% | Similar to CN-GB/T699 20# steel |
| ASTM/AISI 1020 | 0.18～0.23 | <=0.050 | 0.30～0.60 | <=0.05 | 0.15～0.35 | >=410 | >=245 | 25% | Equative to CN-GB/T699 20# steel |
| ASTM/AISI 1035 | 0.32~0.38 | <=0.040 | 0.6~0.9 | <=0.05 | …… | >=585 | >=370 | 30% | Equative to CN-GB/T699 35# steel |
| ASTM/AISI 1045 | 0.43~0.5 | <=0.040 | 0.6~0.9 | <=0.05 | …… | 585Mpa (85KSI) |
450Mpa (65KSI) |
12% | |
| EN10139-DC04 | <=0.08 | 0.025 | ≤0.4 | ≤0.02 | …… | ≥270 | 130～210 | >=34% | For deep drawing stamping |
| EN10139-DC06 | <=0.006 | <=0.020 | <=0.3 | <=0.020 | ..... | 293 | 132 | 47% | For extra deep drawing parts |
That's why we offer a one-step service to supply prototype stamping parts with all these critical processes completed to the highest quality standards and with exceptional efficiency. Our prototype deep draw stamping capabilities are truly comprehensive.
When you work with Metalstar, you can count on us to handle the entire journey, from design to delivery. Our team of experts will collaborate closely with you to ensure every aspect of the prototype part is executed flawlessly.
For deep draw stamping prototype fabrication, our state-of-the-art equipment and specialized know-how allow us to achieve remarkable results, even on the most intricate designs. Trimming, bending, and roll forming are all seamlessly integrated into our workflow, guaranteeing a cohesive final product.
Moreover, our focus on efficiency means we can turn around prototype jobs quickly, without sacrificing quality. We understand the importance of speed in the prototyping phase, and we've streamlined our processes to deliver parts to you on time, every time.
Whether your project involves a simple stamping prototype or a complex multi-stage design, Metalstar is equipped to be your single-source provider. Contact us today to learn more about our comprehensive prototype stamping capabilities.
