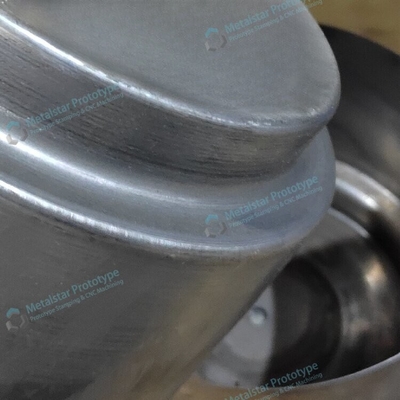

Custom spin forming sheet metal prototype used for appliances

The spin forming method can be used to produce rapid prototype parts with profiles other than just round or circular shapes. While spin forming is most commonly associated with creating rotationally symmetric, cylindrical parts, it can also be adapted to produce a variety of non-circular profiles for rapid prototyping applications.

Here are some examples of the different part profiles that can be achieved using the spin forming method for rapid prototyping:

Elliptical/Oval Parts:
Spin forming can be used to create elliptical or oval-shaped parts by utilizing a non-circular spinning form tool.
This allows for the production of parts with a consistent, smooth oval cross-section along the length of the component.

Tapered/Conical Parts:
The spin forming process can be used to create tapered or conical parts by adjusting the spinning tool profile and feed rate during the forming operation.
This can be useful for prototyping parts like nozzles, funnels, or stepped components.

D-Shaped Parts:
With careful tool design and process control, spin forming can be leveraged to produce parts with limited non-circular cross-sections, such as D-shaped profiles.

Square/Rectangular Parts:
While more challenging, spin forming can also be used to create prototype parts with square, rectangular, or other simple polygonal cross-sections by using appropriately shaped spinning tools.

The key advantage of using spin forming for rapid prototyping is that it is generally a faster and more cost-effective process compared to other metal forming methods, especially for producing small to medium-sized batches of parts.

However, it's important to note that the complexity of the part profile is limited by the inherent rotational symmetry of the spin forming process. More complex, non-axisymmetric geometries may be better suited for other rapid prototyping techniques, such as 3D printing or deep draw stamping.

In summary, while spin forming is most commonly associated with circular parts, it can be a versatile rapid prototyping method capable of producing a range of non-round profiles, depending on the specific part requirements and the capabilities of the available spin forming equipment.
