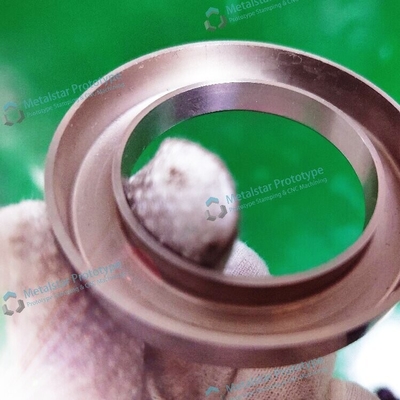

Steel quick turn CNC or NC turning prototype used for motorcycle

How does the numeric controlled (NC) lathe work to produce quick turn prototype parts through our custom NC turning process?

At the heart of our rapid prototyping capabilities is our state-of-the-art NC lathe. This highly advanced machine tool is programmed to precisely control the movement and actions of the cutting tools, allowing us to fabricate complex parts with unparalleled accuracy and efficiency.

The process begins with a digital model of the part, which is converted into a series of numerical control (NC) instructions that the lathe can interpret. These instructions provide detailed information about the part geometry, cutting tool paths, speeds, and feeds, enabling the machine to execute the necessary operations automatically.

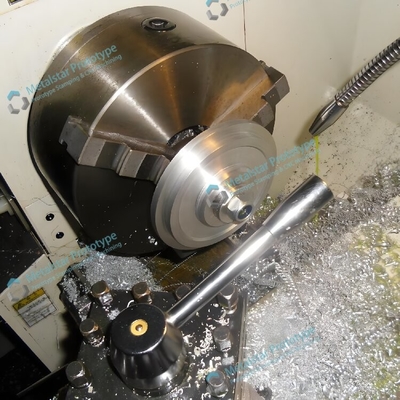

Once the NC program is loaded, the lathe's computerized controls take over, precisely coordinating the movement of the cutting tools with the rotation of the workpiece. The cutting tools, which can be precisely positioned and oriented, remove material from the workpiece in a carefully orchestrated sequence to create the desired features and geometry.

One of the key advantages of the NC lathe is its ability to work with a wide range of materials, including metals, plastics, and composites. This versatility allows us to quickly produce prototype parts made from the same materials that will be used in the final production parts, ensuring that the prototypes accurately reflect the characteristics of the finished product.

Another important aspect of our NC turning process is the use of advanced tooling and workholding solutions. By carefully selecting and configuring the cutting tools and workholding fixtures, we can achieve exceptional levels of precision and surface finish, even on the most complex prototype parts.

For example, when producing a prototype stainless steel 304 valve component, we might use a combination of specialized cutting tools, such as precision carbide inserts and diamond-tipped tools, to ensure the tight tolerances and smooth surfaces required for the part's critical sealing surfaces.

The speed and efficiency of our NC turning process is also a significant advantage when it comes to rapid prototyping. Unlike traditional manual machining methods, which can be time-consuming and labor-intensive, our NC lathes can operate continuously, producing parts with minimal human intervention.

This allows us to quickly turn around prototype parts, often in a matter of days or even hours, depending on the complexity of the design. This rapid turnaround time is essential for industries like aerospace, medical devices, and consumer electronics, where time-to-market is a critical factor.

In summary, the numeric controlled lathe is the backbone of our custom NC turning rapid prototype machining capabilities. By leveraging the precision, versatility, and speed of this advanced machine tool, we are able to deliver high-quality prototype parts that meet the demanding requirements of our clients across a wide range of industries.
