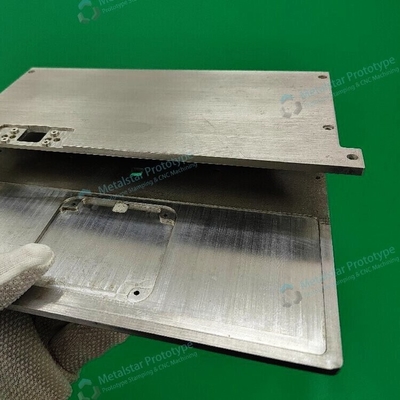

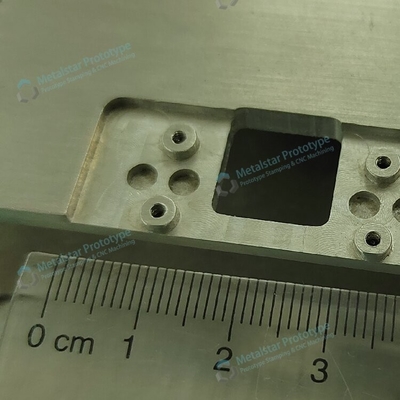

Custom 7075-T651 CNC aluminum prototype machining for automobile

Custom 7075-T651 CNC aluminum prototype machining for automobile
Custom 7075-T651 CNC aluminum prototype machining for automobile Custom 7075-T651 CNC aluminum prototype machining for automobile

Large Image :  Custom 7075-T651 CNC aluminum prototype machining for automobile

Product Details:
Place of Origin: China
Brand Name: Metalstar Prototype
Certification: NA
Model Number: NA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Cardboard or wooden box
Delivery Time: 10 - 12 working days
Payment Terms: T/T
Supply Ability: 1 - 50 pcs/2weeks

Custom 7075-T651 CNC aluminum prototype machining for automobile

Description
Raw Material: Aluminum Alloy 7075-T651 Processsing: CNC Machining, CNC Milling
Devices Configuration: 3-axis CNC Machinery Milling Accuracy: +/-0.10mm Or Up To +/-0.01mm
Durability: High, Long Time Lasting Quality System: 100% Inspection Before Shipment
Highlight:

7075-T651 aluminum prototype machining

,

automobile cnc aluminum prototype

,

Custom aluminum prototype machining

At Metalstar, we pride ourselves on offering top-notch CNC aluminum prototype machining services for a wide range of industries. From aerospace and automotive to medical and consumer goods, we have the expertise and capabilities to deliver high-quality parts that meet the unique demands of each sector.



When it comes to the durability of our prototypes, we refuse to compromise. We use only the finest aluminum alloys and other metal materials, ensuring that the components we produce not only perform flawlessly but also stand the test of time. Our clients can rest assured that the parts we deliver will not only meet their functional requirements but also withstand the rigors of real-world use.



But our commitment to excellence extends far beyond the physical attributes of our prototypes. From the moment you first reach out to us, we care about every detail of your project. Our team of skilled engineers and machinists works closely with you to understand your exact needs and specifications, and we leverage our state-of-the-art CNC machining capabilities to bring your vision to life.



At Metalstar, we don't just make promises – we practice them. Our unwavering dedication to quality and customer satisfaction means that you can always count on us to get it right, first time, every time. Whether you're developing a new product or optimizing an existing design, you can trust us to provide the CNC aluminum prototype machining or CNC steel prototype machining services you need to stay ahead of the competition.



Raw Material Properties of Aluminum Alloys
Material Grade/
Description
Chemical Composition (weight %) T.S
(Mpa)
Y.S
(Mpa)
EL Hardness
(Cu) (Si) (Fe) (Mn) (Mg) (Zn) (Cr) (Ti)
Aluminum 5052-H32 <=0.1 <=0.25 <=0.40 <=0.1 2.2~2.8 <=0.1 <=0.1 NA 170~305 >=90 >=10% 120-160HB
Aluminum 6061-T6 0.4 0.8 0.7 0.2 1.2 0.5 0.4 0.2 310~340 280~315 20.0% HB65~95
Aluminum 6063-T6 0.1 0.2~0.6 0.4 0.1 0.45~0.9 0.1 0.1 0.1 >=250 110 7.0% HB75
Aluminum A7005 <=0.10 <=0.35 <=0.40 0.20~0.7 1.0~1.8 4.0~5.0 0.06~0.2 0.01~0.06 324 215 11.0% HB60~94
Aluminum 7075-T651 1.2-2.0 <=0.4 <=0.5 <=0.3 2.1-2.9 5.1-6.1 0.18-0.28 <=0.2 520 480 10.0% 120HBW
